Binding Procedure
The Micro receiver comes with officially major release V2.0.0 protocol and has not been set for a Binding Phrase. So please make sure the RF TX module works on officially major release V2.0.0 protocol and no Binding Phrase has been set beforehand.

Enter binding mode by plugging in and unplugging the Micro receiver three times;
Make sure the LED is on double flashing, this indicates the Micro receiver is in bind mode;
Make sure the RF TX module or radio transmitter also enters the binding mode, which sends out a binding pulse;
When the LED light is solid, it indicates that the devices are successfully bound.
Note: once the devices have been successfully bound, the receiver will store the binding information. There would be no need for re-bind on the later use as the devices would be connected automatically.

Note: If you reflash the firmware of the Micro receiver with your own Binding Phrase, please make sure the RF TX module has the same Binding Phrase to perform an auto bind.

Specification
Item: BETAFPV ELRS Micro Receiver

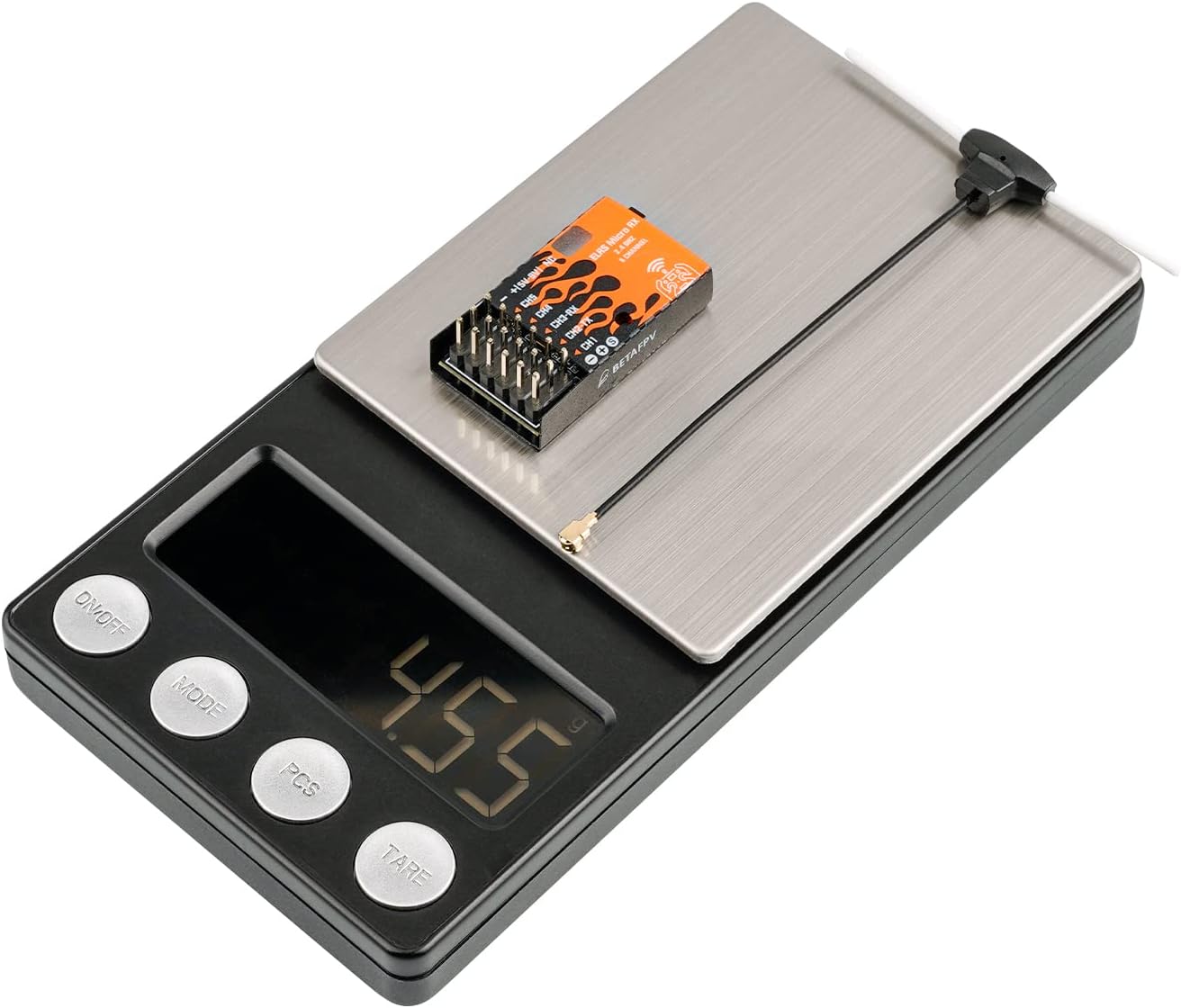

Weight: 4.5 g (with antenna).

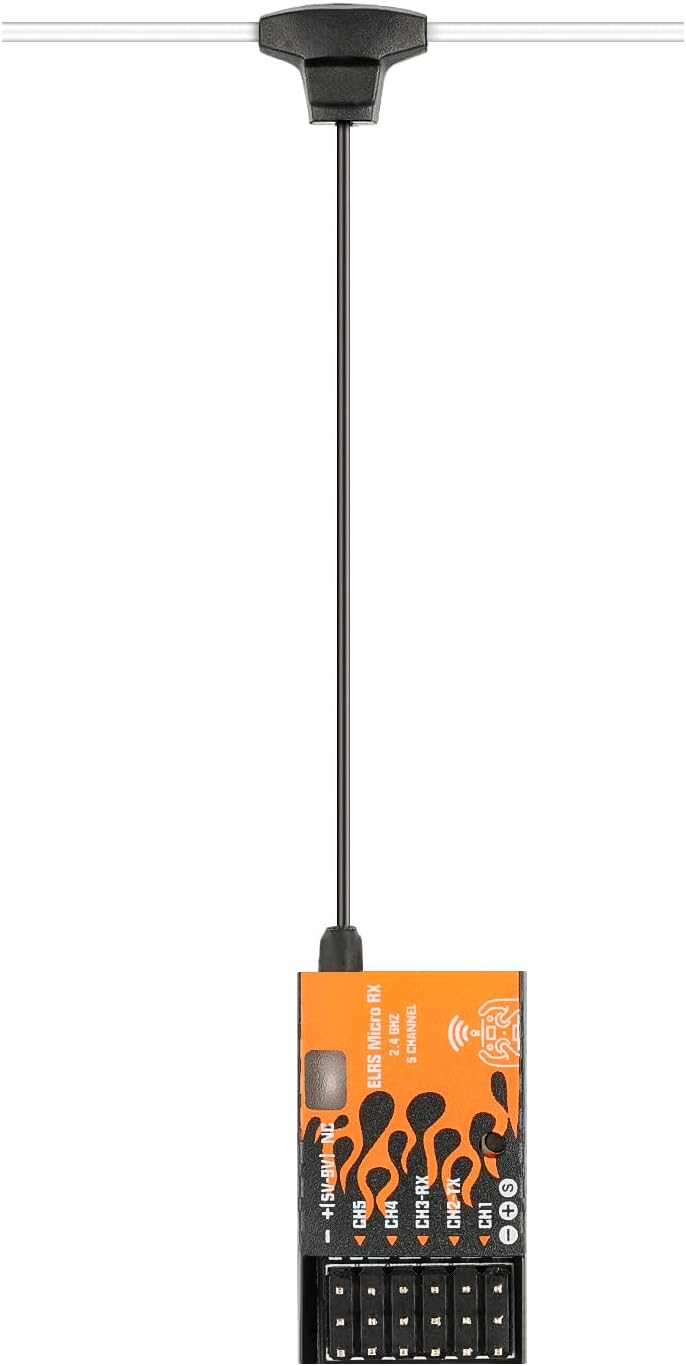

Antenna: IPEX MHF + T antenna (recommend 80 mm dipole T antenna).
PWM channel: 5 channels.
Serial output protocol: PWM or CRSF

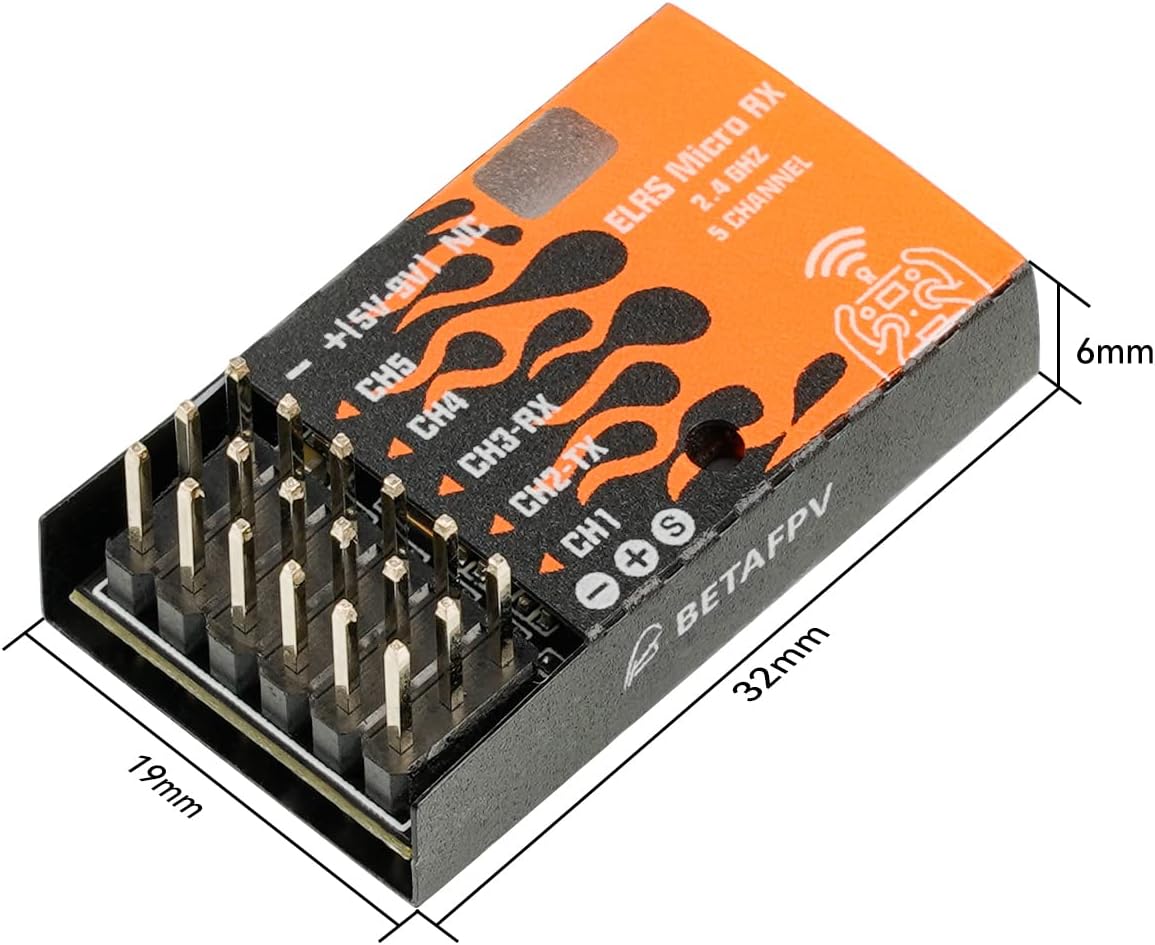

Size: 19 mm x 32 mm x 9 mm (without antenna).
MCU: ESP8285/SX1280/SX1281.
Telemetry power: 12.5 dbm/17 mW.
Frequency bands: 2.4GHz ISM.
Input voltage: 5 V ~ 9 V DC @ "+" pad.
Default firmware version: ExpressLRS v2.0
Adapted RC model type: multi-rotors, fixed-wing aircraft, helicopters, RC cars, RC boats and etc.

Package contents:
1 x ELRS micro receiver.
1 x BETAFPV 80 mm T antenna
